Technical Specification for 5-20KVA Online UPs

Input	Power Rating				5KVA	7.5KVA	10KVA	15KVA	20KVA
	voltage range		v		400±20%
	Frequency		Hz		50±5%
	input power factor				>0.92
	charger Topology				BUCK IGBT
	Electrical connection		I/P-O/P		4 Sq.mm	4 Sq.mm	6 Sq.mm	6 Sq.mm	8 Sq.mm
			Batt	360 V	6 Sq.mm	6 Sq.mm	8 Sq.mm	10 Sq.mm	12 Sq.mm
				240 V	6 Sq.mm	8 Sq.mm	10 Sq.mm	12 Sq.mm	16 Sq.mm
			Earth & I/P-Neut		2.5 Sq.mm
Output	Power factor		lag		0.8
	voltage		V		230
	Voltage regulation		%		±1
	Frequency		Hz		50
	Frequency regulation		Hz		±0.05
	Waveform				Pure Sine Wave
	Transient Response		%		<8(10%~90%(Linear Load))
	Voltage Harmonic		%		<3(Linear Load)
	Over Load Capacity				100 to 110% : 18 Min 110 to 120 : 2 Min 120 to 150 : 30 Sec 150 to 300 : 20-30 msec. Min >300 immediately
	Crest Factor				3:1
	Receptacle				BS546,Screw Terminal
Audible Warning	Battery Back-up Ending				intermittent
	OverLoad				Continuous
	Protection				Output H/L-R,Y,B # Overload-R,Y,B # Output Short Circuit # Mains H/L-R,Y,B # Battery Over Voltage # Battery Under Voltage .
Display	LED				UPS ON # output L/H-R,Y,B # Overload -R,Y,B, Batt-H/L# Charging On # Main L/H- R,Y,B.
	LCD 20X4				Input Output & Battery Parameter, Load Level, Working mode and Fault Status.
	Touch Screen Color Display (Optional)				Input Output & Battery Parameter, Load Level, Working mode and Fault Status.
Interface	Db9				RS232/USB Port,SNMP(Optional)
Others	Battery Start				Standard
	Cabinet Wheels				Standard
	Extended Battery Charging				Optional
	Static By Pass				Optional/Default Rotary Switch
Overall	Efficiency(AC-DC)		%		>90**(Full Load)
	Transfer Time		ms		0
	Temperature		° c		0~45
	Humidity		%		5-95(Non-Condensed)
	Dimension	Width	Inch		13	13	13	19	19
		Heigth	Inch		27	27	27	30	30
		Length	Inch		31	31	31	33	33

Touch Screen Color Display
- Input, Output & Battery Parameters,
- Load Percentage,
- Working Status of UPS at Mains mode or INV mode & Fault Message

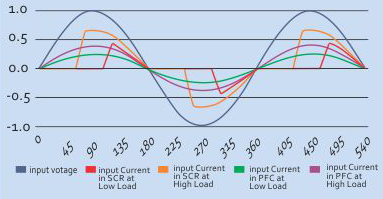

Active Power Factor Correction
- DSP Controlled, Unity Power Factor on Full Load,
- Reduces input AC Current to half in comparison to SCR Charger.
Customization Available

Single Inverter Card Including Power Device
- All in One Single Inverter Card with DSP controller.
Communication
- SNMP/ETHERNET
- RS232
- USB
